4/3 Ft Single Cylinder Hydraulic Cone Crusher / Rock Crushing Equipment For Gold Ore Iron Ore

  • 1
  • 2
  • 3

Brand Name : SINOTRUCK

Model Number : 4FT

Certification : CCC/CE/ISO

Place of Origin : CHINA

MOQ : 1UNIT

Price : Negotiation

Payment Terms : LC/TT

Supply Ability : 1000UNIT/WEEK

Delivery Time : 35 working days after received payment

Packaging Details : Nude, but with wax sprayed.

Model : PYG100

Power (kW) : 75

Stroke (mm) : 21

Cavity shape : C

Inlet size (mm) : 140MM

Overall dimension L×W×H(mm) : 2970×1940×3280

Contact Now

Mining Equipment Single Cylinder Hydraulic Cone Crusher for Gold Ore Iron Ore

Brief Introduction of Hydraulic Cone Crusher :

Single Cylinder Hydraulic Cone Crusher adopts the best combination of crushing frequency and eccentricity, so the content of fine crushed products is higher. Therefore, the efficiency of more fine products but less grinding is very significant. The power consumption of crushing and grinding is also reduced greatly.

Perfect combination of high crushing efficiency and highly efficient chamber makes larger capacity than other crushers. More materials are crushed in different layers, so the shape of final product is evenly cubic. Hydraulic insurance, Hydraulic adjustment and method for cleaning chamber make operation easier and maintenance much more convenient. It is easier to realize automation. This series of Single Cylinder Hydraulic Cone Crusher has much less breakdown, the rate of operation is over 85%, so the whole cost is reduced greatly.

Working Principle of Hydraulic Cone Crusher:

Single Cylinder Hydraulic Cone Crusher Crushing process is completed between the fixed cone and eccentric rotating moving cone. Horizontal axis of crusher is driven by motor through the V-belt, the horizontal axis drives the eccentric cover by the gear. Eccentric cover makes main shaft rotate to cause eccentricity. Materials enter crushing chamber through upper inlet of crusher, and crushed products are discharged out through the lower outlet.

Advantages of Hydraulic Cone Crusher:

1. Human design and hydraulic adjustment of discharge outlet saves time and work. Adjustment can be controlled by buttons.

2. Single hydraulic system adjusts main shaft and body, the body can rise and decline integrally to adjust discharge size, so slope of side cylinder and upper frame can be avoided.

3. Working pressure system can be adjusted hydraulically; pressure adjusting system can discharge super hard materials to protect the machine.

4. Spare parts can be changed easily. The rolling mortar wall and cone body combined stably after precise design, and there’s no need to fill again, so time to change spare parts can be saved. Stuffing is not necessary to be filled as the installation of rolling mortar is very stable.

5. Hydraulic pressure of the whole machine is low, so the pressure to hydraulic parts and main engine is also low, hydraulic system is more durable and stable.

6. The size and weight of this machine are relatively small, so installation and transportation are very convenient.

Technical Data:

Model

Power

(kW)

Stroke

(mm)

Cavity shape

Inlet size

(mm)

Capacity (t/h) with different discharging outlet size (mm)

Overall dimension

L×W×H(mm)

Weight

(t)

8 10 15 20 25 30 35 40 45
PYG100 75 21 C 140 45-65 55-75 65-85 85-105 2970×1940×3280 10.8
M 120 30-50 40-60 50-70 60-80
F 100 20-40 30-50 40-60 50-70
90 27 C 130 70-90 80-100 90-110 100-120
M 120 50-70 60-80 70-90 80-100
F 100 35-55 45-65 55-75 65-85
PYG200 132 26 C 190 110-130 130-150 170-190 190-210 3340×2200×3630 19.5
M 170 75-95 90-110 110-130 150-170
F 130 50-70 60-80 70-90 90-110 125-145
160 34 C 190 130-150 150-170 190-210 210-230
M 170 90-110 110-130 130-150 170-190
F 130 60-80 75-95 90-110 110-130 150-170
PYG300 200 31 C 200 185-205 225-245 255-275 280-300 290-310 3950×2480×3820 37.6
M 190 120-140 155-175 185-205 215-235 240-260 250-270
F 170 90-110 100-120 125-145 150-170 180-200 200-220
250 38 C 200 225-245 265-285 290-310 310-340 330-350
M 190 150-170 185-205 225-245 255-275 280-300 290-310
F 170 110-130 130-150 155-175 185-205 215-235 240-260

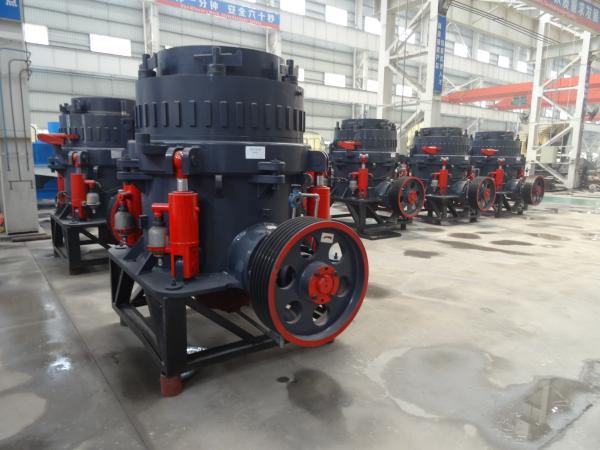

4/3 Ft Single Cylinder Hydraulic Cone Crusher / Rock Crushing Equipment For Gold Ore Iron Ore4/3 Ft Single Cylinder Hydraulic Cone Crusher / Rock Crushing Equipment For Gold Ore Iron Ore4/3 Ft Single Cylinder Hydraulic Cone Crusher / Rock Crushing Equipment For Gold Ore Iron Ore
