6x4 371hp 5 Ton Boom Truck Crane With XCMG Arm HW19710 Transmission ZZ1257N5841W

Name: 6x4 371hp 5 Ton Boom Truck Crane With XCMG Arm HW19710 Transmission ZZ1257N5841W
Brand: SINOTRUK HOWO
Price: 1 USD

6x4 371hp 5 Ton Boom Truck Crane With XCMG Arm HW19710 Transmission ZZ1257N5841W Manufactures

Brand Name : SINOTRUK HOWO

Model Number : ZZ1257N5841W

Certification : ISO/CCC

Place of Origin : JINAN SHANDONG

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 units/month

Delivery Time : 30-45 work days

Packaging Details : Nude

Transmission : HW19710,10 forward&2 reverse

Front axle : HF7, 7ton

Rear axle : ST16, 2x16ton

Arm brand : XCMG

Cargo body inner dimension (LxWxH) : 8000x2300x600mm

Pressure of hydraulic system : 18Mpa

Contact Now

ZZ1257N5841W China 6x4 371hp 5ton boom truck crane with XCMG arm crane HW19710Transmission

Description:

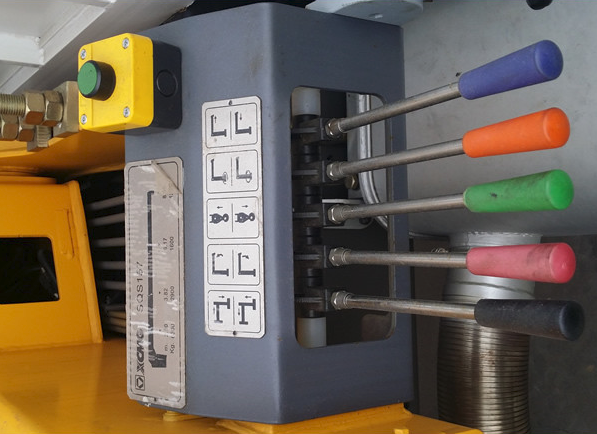

It has large space and wide views. The control levers and instrument buttons are at hand.Torque limiter.The colorful LCD display of the torque limiter can shows all the important operating information.Engine,Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competitive Advantage:

1.Shipping:have logistic team, can cargo your truck fast and safety.

2. High quality and competitive price.

3. All colors are available according to your choice.

4. Fast production period, and quick arrangement of delivery.

5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.

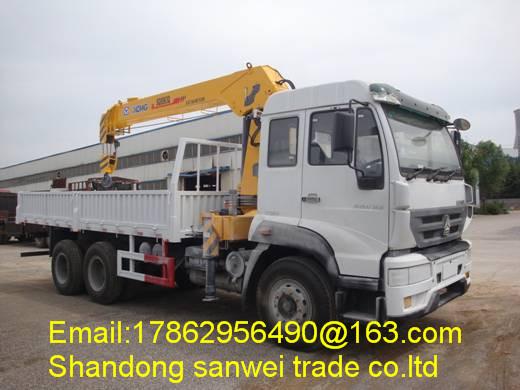

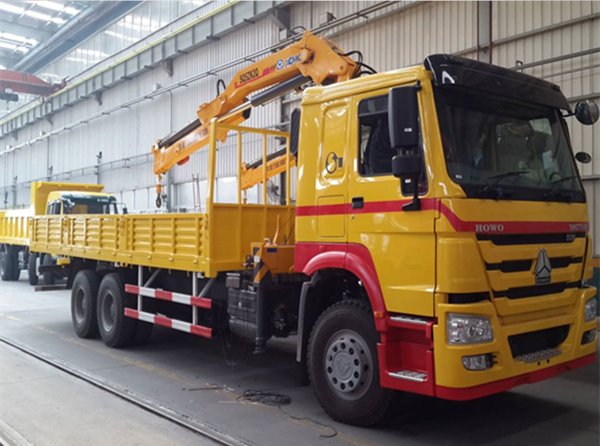

SINOTRUK HOWO 6x4 cargo truck with 5ton telescopic boom crane
Truck Brand			SINOTRUK—HOWO
Chassis No			ZZ1257N5841W
Cargo body inner dimension (LxWxH)			8000x2300x600mm; floor3mm,side1.5mm
Dimension(Lx W xH)(unloaded)(mm)			11963×2560×3900
Telescopic arm crane XCMG SQ5SK2Q			Max.lifting capacity:5ton Max.lifting moment:125kN.M Rotation angle:360°(all rotation) Oil flow of hydraulic system:32L/min Pressure of hydraulic system:18Mpa Oil tank capacity:90L
Approaching angle/Departure angle(°)			16/10
Overhang(front/rear) (mm)		1500/3288
Wheel base (mm)		5825+1350
Max speed(km/h)		90,102
Curb weight(kg)		12850
Gross Vehicle weight(kg)		25000
Engine		WD615.47, Inline 6 cylinders,supercharged intercooling,central supercharger,electric high pressure and common rail
		Diesel
		371HP
		Euro 2
Transmission	Model	HW19710,10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	8198,hydraulic steering with power assistance
Front axle	HF7, 7ton
Rear axle	ST16, 2x16ton
Tyre	295/80R22.5 or 12R22.5, 10+1spare
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HW76 cab,one bed,with A/C all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
