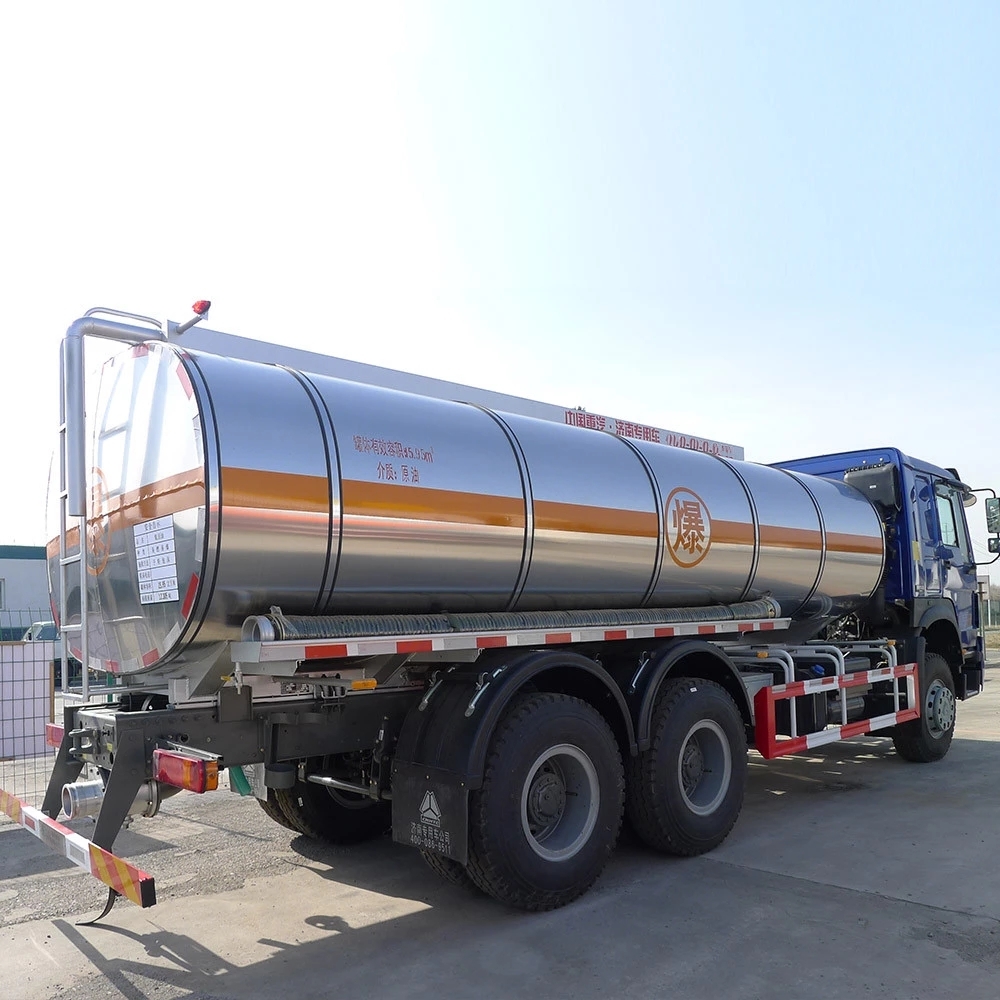

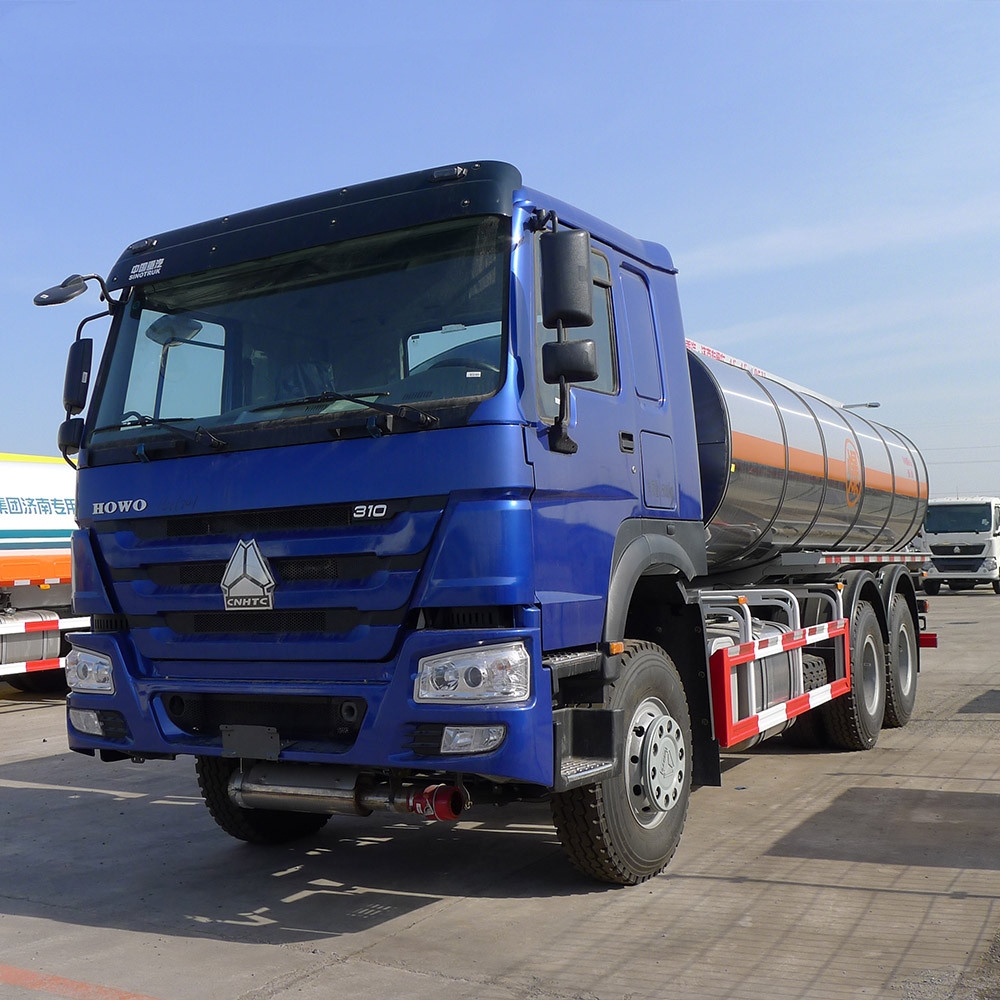

ZZ1257 Sinotruk howo 20 cbm capacity oil tanker truck with Optional color
Product desccription:
This model tractor Truck is produced by SINOTRUK.It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive advantages:
1. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport .
2. Specialization ,standard and accurate meet your requirement.
3. The best quality standard guaranteed
4. supply spare parts (original, OEM, and replacement) for all types of trucks
5. cooperate with efficient logistics which ensure the goods reach you timely and safely.
6. rich experienced team and could provide good after-sales service
Specifications:
| DIMENSION: |
| Overall Dimension: | 10100x 2500 x 3350 mm |
| Axle Spacing: | 4575+1400 mm |
| TANK SPECIFICATION : | |
| Capacity: | 20000L . |
| Tank material: | Carbon steel Q345, the thinkness of the shell is 4.5mm nominal ; |
| Painting: | according to the customer’s requirement. |
| TANK ACCESSORIES AND FITTINGS : |
| Manhole: | One 20” diameter manhole for each compartment. |
| Bottom loading system: | One 4" aluminium foot valve(made in China) per compartment, pneumatic operate. One 3" aluminum alloy pipe line per compartment. Pipe line outlet is lies at right side of tank, located in the front of rear axle. Each pipe line outlet, a 3" aluminium ball valve (made in China)with adaptor is fixed. |
| OTHER FITTINGS |
| Ladder: | A detachable Carbon steel ladder is equipped at the front of the tank |
| Walkway: | Anti-skid walk way along the entire length of tank. |
| Handrail: | Stainless steel pneumatic handrail at both sides on the top of tank. |
| Hose carriers: | Two pcs. Carboon steel |
| Hose: | Two pcs. 3”x4m, 3” aluminum female camlock coupling on both end. |
| Pump: | YHCB-1000, aluminum material, driven by PTO. |
| Fire extinguisher box: | Two boxes are fixed on the left and right side of the tank. |
| Fire extinguisher: | Two 4kg dry powder fire extinguisher. |
| Fender: | Plastic material mudguards with plastic flap. |
