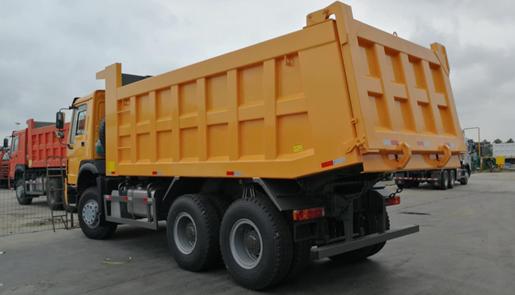

SINOTRUCK HOWO 336 HP 70T Mining Dump Truck with ZF8198 Steering power steering
Description:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export
standard packing of the manufacturer, be suitable for long distance transportation of
ocean and inland. The Seller shall be take measures against moisture,
shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport .
2. Specialization ,standard and accurate meet your requirement.
3. The best quality standard guaranteed
4. Warranty: one year
5. Production time: within 35 working days
6. Shipping: we have logistic team, can cargo your truck fast and safety.
| Vehicle Main Dimensions | (L x W x H)mm | 8420x3200x3700 |
| Wheel base (mm) | 3400+1400 |
| Wheel track (front/rear) (mm) | 2400/2200 |
| Approach/Departure angle(°) | 35/50 |
| Weight in KGS | Tare Weight | 21000 |
| Loading Capacity(max) | 50000 |
| Front axles loading capacity HW | 1x12000 |
| Rear axles loading capacity AC25 | 2x25000 |
| Max. driving speed(km/h) | 67 |
| Engine | Brand | Sinotruk |
| Model | WD615.69 |
| | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| | Horse Power(HP) | 336HP |
| | Emission standard | Euro 2 |
| Gearbox | HW19710 |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | ZF8198,power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 400L |
| Tire | 14.00-20 Nylon tire |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Electrics | Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
Product Tags:
|
|
336 HP 70 Ton Mining Dump Truck With ZF8198 Steering Power Steering High Speed Images
|
