HOWO 6×4 20CBM Refueling Oil Tanker Truck Optional Color 336HP 15001 - 30000L
Product description
Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.
1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.
2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
3.Tank shape: Optional for round square, oval, and round;
4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.
Product parameter
| Name | SINOTRUK HOWO 20M3 Oil Tank Truck |
| Dimension(LxWxH) | 10350×2496×3350 mm |
| Total Mass | 24500 Kg |
| Rated Payload | 15000 Kg |
| Cerb Weight | 11250 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 16/12 |
| The Parameters of Chassis | |
| Manufacture/Model | HOWO/ZZ1257N4647D1 |
| Driving Type | 6*4 left/right hand drive |
| Wheel Base | 4600 + 1350mm |
| Front/Rear Track | 2022/1830(mm) |
| Tyre | 12R22.5, 10+1 spare tire |
| Front/Rear Suspension | 1500/2900(mm) |
| Leaf Spring Number | 4/-,4/12,10/-,10/12 |
| The Paremeters of Engine |
| Engine Model | D10.34-40 |
| Rated Power | 340hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 9726ml |
| Emission Standard | Euro 3/4/5 |
| Manufacturer | China Heavy Duty Group Co., Ltd. |
| The Parameters of Equipment |
| Color/Logo | Customizable |
| Material | Carbon steel (optional with stainless steel, aluminum alloy) |
| Function | Fuel/oil/diesel Transporting and refueling, etc. |
| Volume of Tank | 20000L |
| Thickness | 5mm |
| Equipment | 1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve. 2. Tank divided into 6 compartments, each discharge valve for each compartment. 3. Each European standard man hole cover and each air emergency valve for each compartment. 4. Equipped with folding barrier on top of the tank. 5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender. |

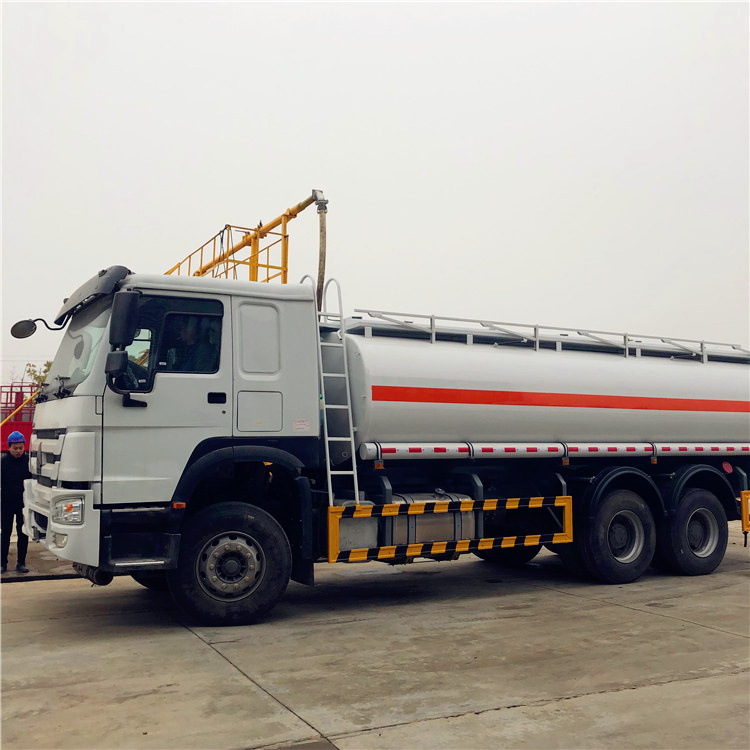

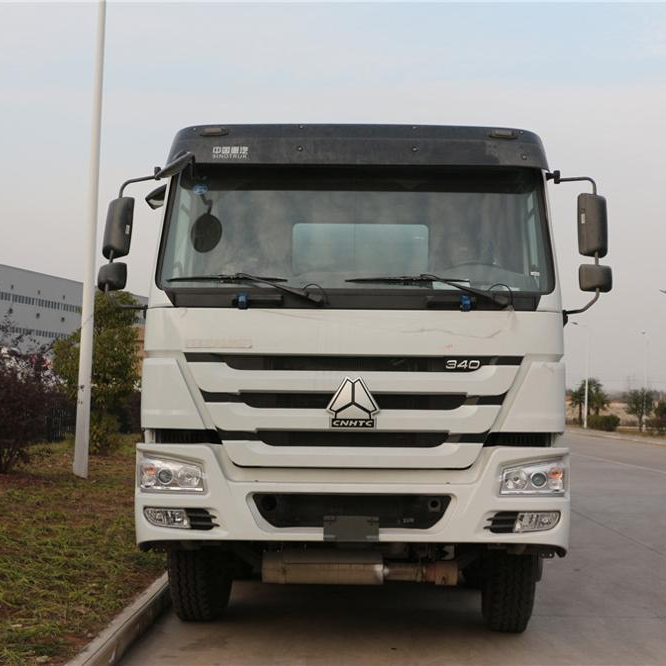

Product picture
