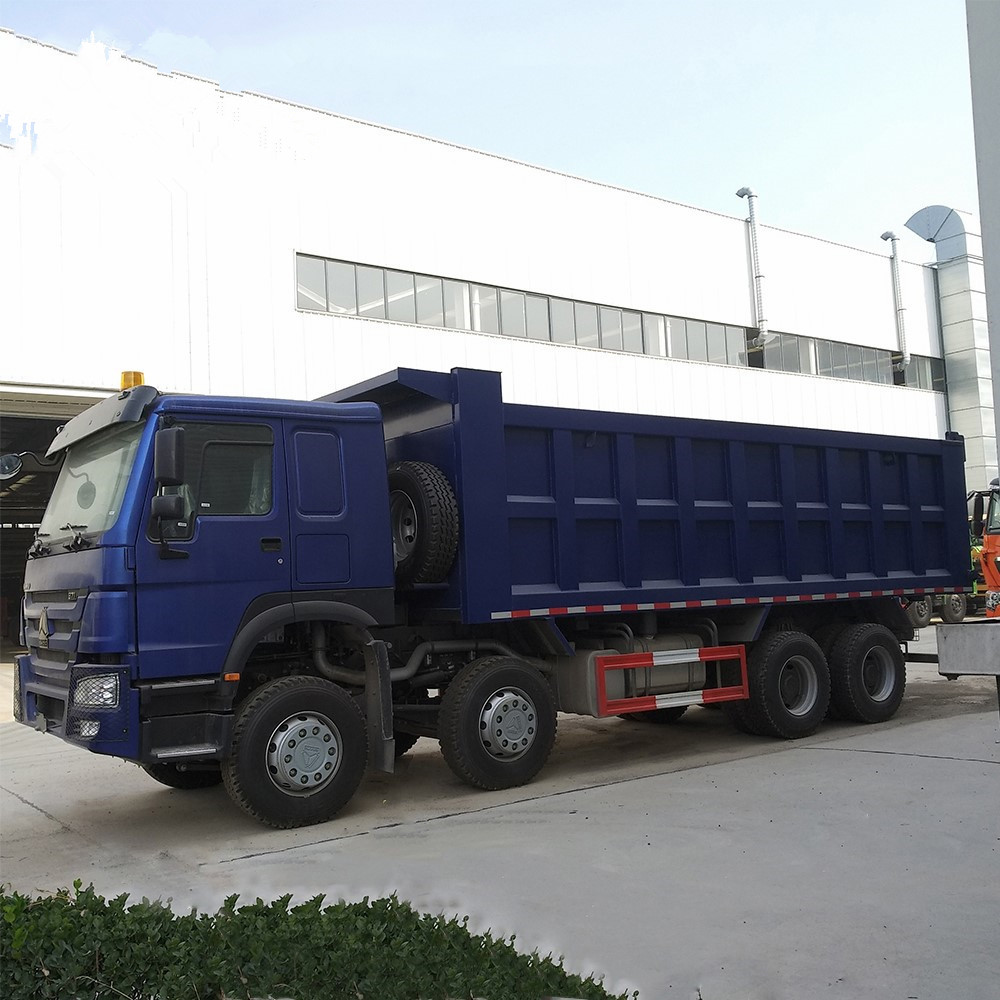

| SINOTRUK HOWO 8x4 Dump Truck Specifications |
Body | Carriage Internal Dimensions(mm) | 8000x2300x1500 |
| Cubage (m3) | 27.6 |
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm |
| Steel | Q235 |
| Hydraulic Lift of Carriage | Front Lift |
Weight in kg | Kerb weight (Kg) | 10460 |
| Gross vehicle weight (Kg) | 31000 |
Dimension(mm)
|
Dimensions(mm) | Length(mm) | 10315 |
| Width(mm) | 2496 |
| Height(mm) | 3125 |
| Wheel base (mm) | 1800+4600+1350 |
| Angle( ̊ ) | Approach | 14 |
| Departure | 33 |
Performance | Maximum driving speed (km/h) | 82 |
| Fuel consumption (1/100 km) | 46 |
Cab | Model | SINOTRUK HW76 Low-floor Lengthen cab |
| | HW76 cab, (single sleeping, with air-condition), all-steel forward control,70̊ hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder,safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorbers. |
Engine | Model | WD615.47(Euro 2) |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Horsepower | 371 |
| Maximum output Kw/r/min | 274/2200 |
| Maximum torque N.m/r/min | 1460/1300-1600 |
| Bore x Stroke | 126x130mm |
| Valve | 2 |
| Displacement | 9.726L |
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan |
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) |
Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. |
| Suspension | Front overhang | 1500mm |
| Rear overhang | 1360mm |
Rear Axles | SINOTRUK AC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.45;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading. |
Brake System | Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
| Wheels & Tyres | Rims | 10 hole-steel |
| Tyres | 12.00R20 radial tyre with 1 Spare tire. |
| Wheel tread | 2022/2022,2041/2041,1830/1830mm |
Electrics | Operating voltage:24V,negative grounded
24V,7.5KW.Starter:24V,7.5 Kw
28V,1500W.Alternator:3-phase,28V,1500 W
2x12V,165Ah.Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Oil Tank | Square type-300L Aluminum alloy fuel tank |
