FAW J5M 6x4 tractor truck For Heavy Duty 400 HP LHD RHD prime mover tractor head brand new
Product Quick Details:
Condition:New
Horsepower:351 - 450hp
Drive Wheel:6x4
Transmission Type:Manual
Emission Standard:Euro 2
Engine Capacity:> 8L
Fuel Type:Diesel
Brand Name:FAW
Size:7190x2495x3800
Gross Vehicle Weight:8805
Engine:266HP/290HP/336HP/371HP/420HP
Cabin:with One Sleeper Bed,with Two Sleeper Bed
Tire:12.00r20, 315/80r22.5
Drive Type:4X2/6X4
Color:Blue, Green, Yellow, white, red, black
Capacity Load:40ton, 50ton, 60ton
Driving Style:Left Hand Drive or Right Hand Drive
Driver Seat:Air-Supporting Driving Seat
Air Conditioner:with A/C or Without A/C
Working Condition:for Bad Road Condition, for Desert Condition
Product Features:
Cabin: artistic, modest, streamlined design;
Interior: ergonomics, clean, convenient
Flat floor design: big cabin space and easy moving
High strength frame: high payload capacity Reliable engine, gearbox and axle
1. Factory outlet,Delivery on time
2. High quality with competitive price
3.Advanced technology
4 With Optional drive
Product Specification:
| | |
| Recommended Vehicle Model | CA3223P1K2T1YA80 | CA3253P7K2T1YA80 |
| Mass Parameter(kg) | Chassis net weight kg | 7780 | 7780 |
| MAX gross kg | 28000 | 31500 |
| Dimension Parameter(mm) | Overall Dimension | 6775*2490*2760 | 7725*2490*2760 |
| wheel base mm | 3200+1350 | 4150+1350 |
| Performance Parameter | Max. Speed(km/h) | 82 | 90 |
| Economic Speed(km/h) | 50-60 | 60-70 |
| Max. Gradeability(%) | 32 | 20 |
| Cabin | J5M flat top& semi-floating cabin& right | J5M flat top& semi-floating cabin& right |
| Engine | Model | FAWDE CA6DF2D-23 | FAWDE CA6DL1-28 |
| Rated Power(kw/rpm) | 180 /2300 | 209/2300 |
| Max. Torque(Nm/rpm) | 780/1400 | 1100/1300-1700 |
| Transmission | Model | FAW CA7TB110M | ET-16109A |
| Gears | Manual Transmission, 7 forward gears, 1 reverse gears | Manual Transmission, 9 forward gears, 1 reverse gears |
| Axles | Steering Axle | maximum load 5000kg | maximum load 6500kg |
| Drive Axle |
433 single reduction, reduction ratio 5.571, maximum load 11500 kg |
457 single reduction, reduction ratio 4.111, maximum load13000kg |
| Body | Suitable for 4800 mm compartments | Suitable for 6200 mm compartments |
| self-discharging body | self-discharging up load |
| tyre | 11R22.5-16 | 295/80R22.5 |
| Emission Level | E2 | E2 |
| Certifications | | |
| Remarks | | |
| Exported countries | Kenya | Malaysia |
| | | |
| Recommend Market Type | Cargo Type | sand, stone and soil | sand, stone and soil |
| Main Working Condition | Round trip full load | Round trip full load |
| Operating Condition | short distance | short distance |
| Driver Position | right | right |
| Customer Type | Middle end, prefer quality and price | Middle end, prefer quality and price |
| *note:Large price differences in various configurations, please contact us to get the latest information. |
Product Tags:
|
|

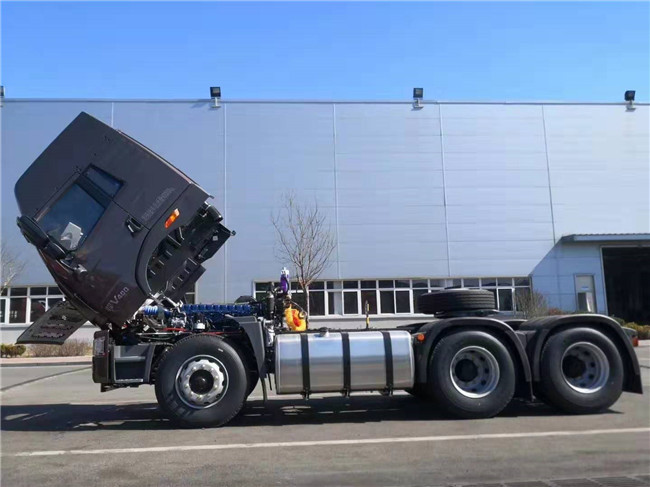

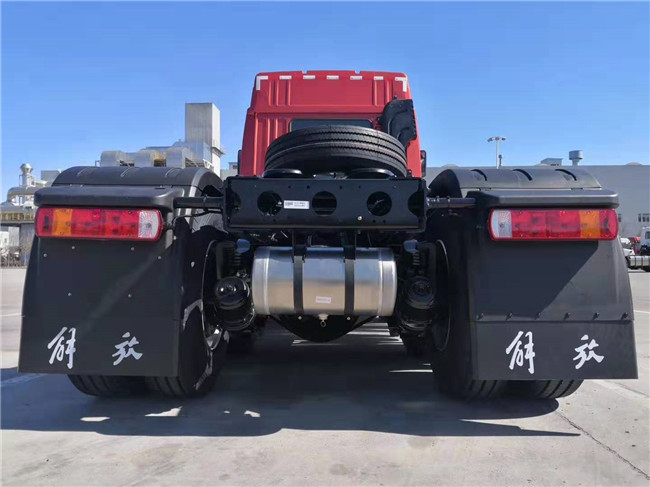

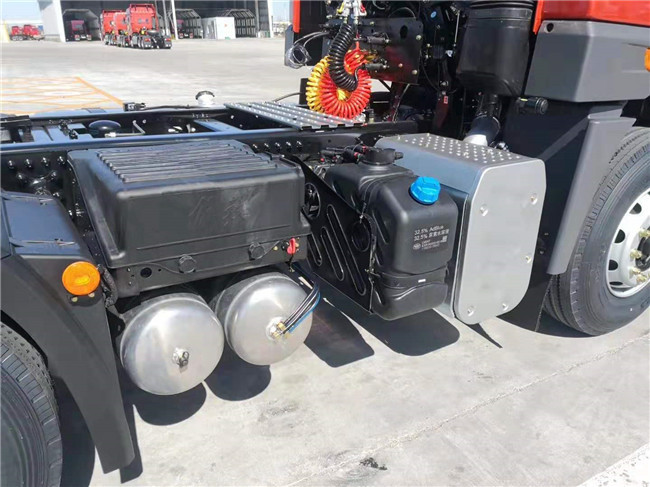

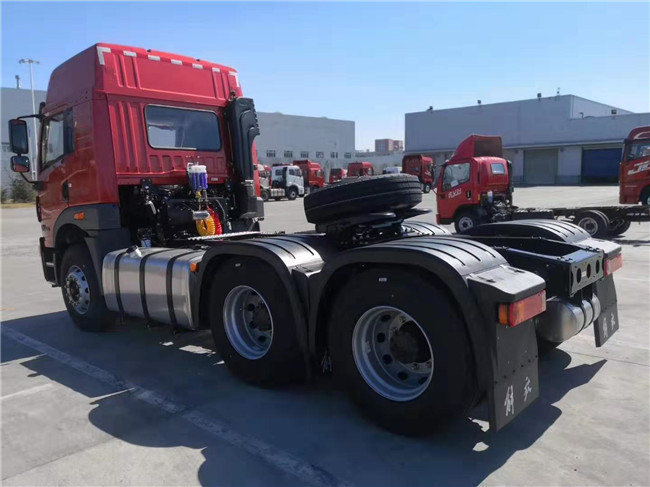

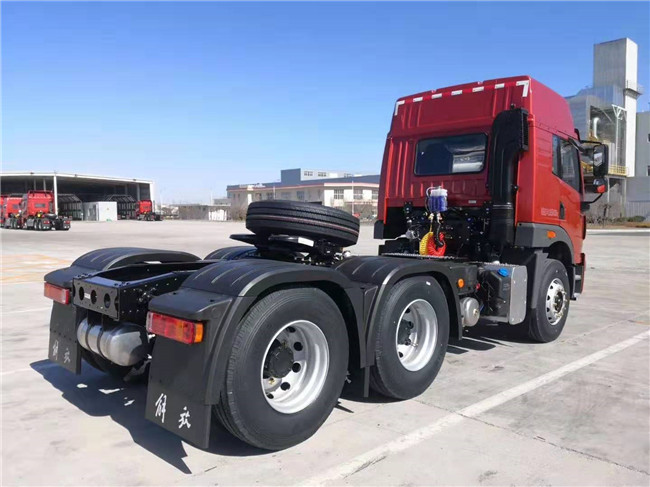

FAW J5M 6x4 Heavy Duty Tractor Truck For 400 HP LHD RHD Prime Mover Tractor Head Images
|
