Yellow SHANTUI 22ton Road Construction Machinery SR22MA Single Drum 120Kw
Product Description
SR20MA/SR20M/SR20MP extra-heavy-load mechanical vibratory road roller integrates the advantages of domestic high-tonnage road rollers, featuring high equipment configuration and reasonable system matching. It utilizes own weight and the centrifugal force to compact various kinds of construction and road building materials, featuring reliable performances and best cost performance. This product is suitable for compacting various non-clayed soils, such as gravel, gravel and sand mixture, and various concretes, and is an ideal compacting machine for large infrastructure projects.
Engine model: SC8D175.1G2B1
Rated power: 128kW
Total weight: 20000/20800kg
Shangchai SC8D series turbocharged diesel engine is jointly developed with Austrian AVL, featuring prominent performances, high reliability, and good fuel economy, and is one mainstream ins.
Vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibra.
The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.
Two independent brake systems (service brake and parking brake) feature stable braking, high safety and reliability, simple structure, and easy maintenances.
The streamline rear hood features beautiful and elegant modeling and broad visual field. The working device equipped features reasonable design. The imported seat and rubber shock-absorbing design minimize the working strength of the operator.
Standard double-amplitude function expands the application scope of the equipment.
The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
The design of the drum vibration parameters conforms to the requirements of working site and the padfoot drum can be assembled to expand the application scope.
The standard floatation tires and the optional drive tires expand the working condition adaptability of
the machine.
Product Parameter
| ength × width × height (mm) | 6229×2325×3180 | Total weight (kg) | 20000/20800 |
| Front wheel weight (kg) | 9900/10700 | Theoretical gradeability (%) | 30 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 463/490 |
| High vibration amplitude | 2.0/1.6 | Low vibration amplitude | 1.0/0.8 |
| Vibration frequency (high/low) (Hz) | 32/28 | Centrifugal force (high/low) (kN) | 335/210 |
| Engine model | Shangchai SC8D175.1G2B1 | Rated power (kW) | 128 |
| Number/height of padfoot (mm) | 154/95 | The condtion | new |

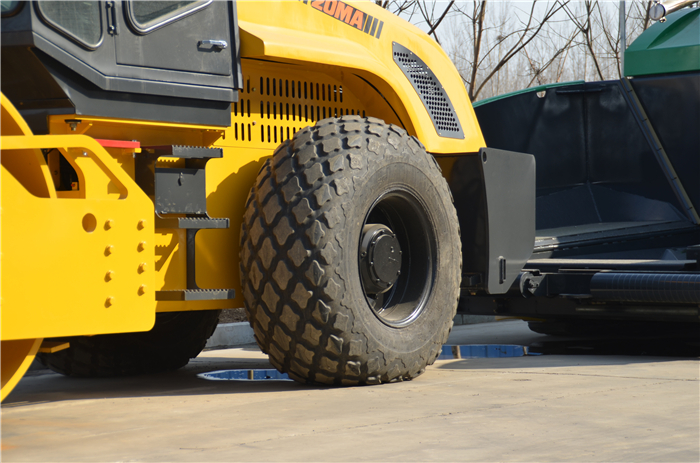

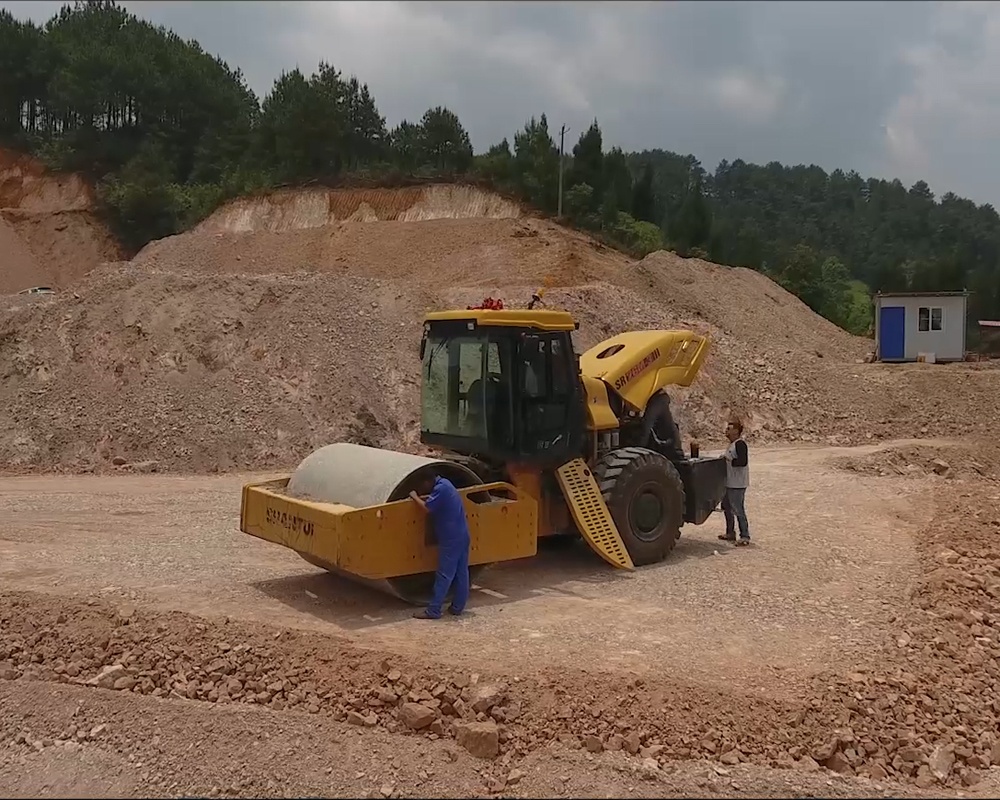

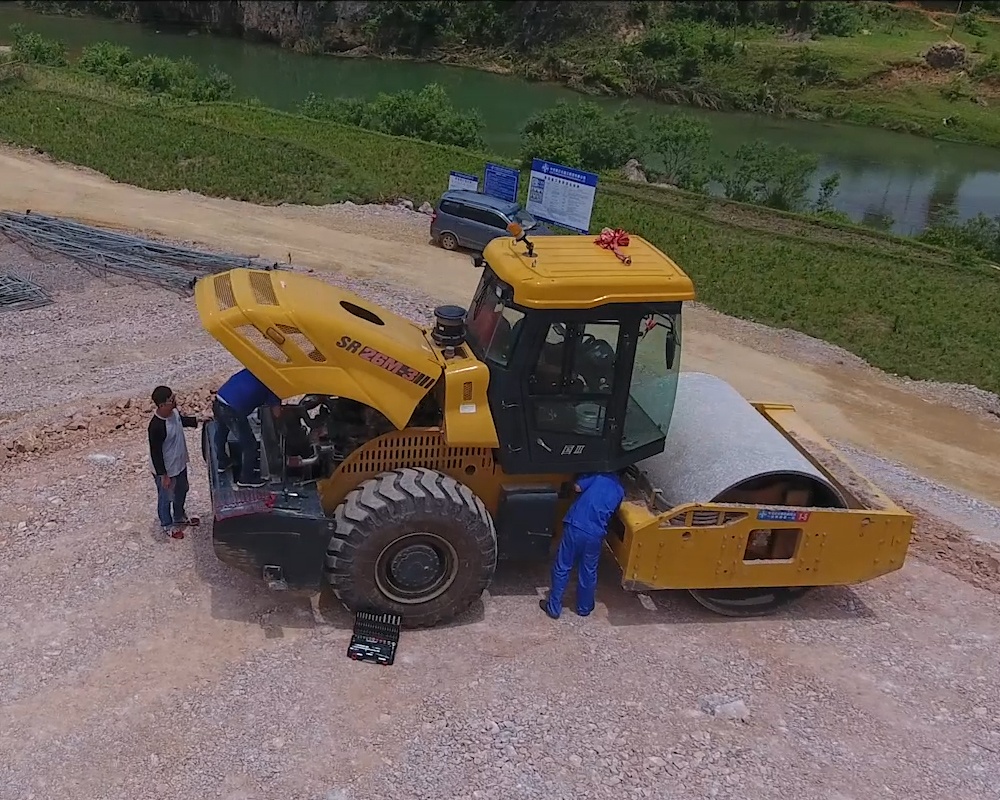

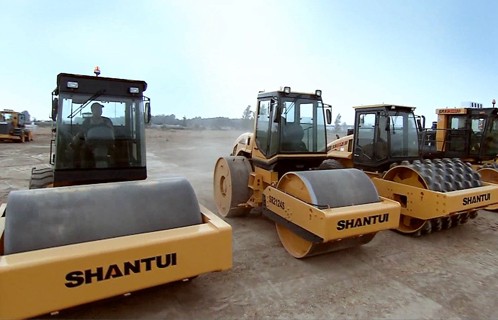

Product Picture
