Brand Name : SEM
Model Number : SEM919
Certification : ISO CCC
Place of Origin : China
MOQ : 1 piece
Price : Negotiation
Payment Terms : L/C, T/T
Supply Ability : 500 pieces per month
Delivery Time : 30-45 work days
Packaging Details : Nude
Dimension(L*W*H) : 8703x2630x3360mm
Max. lifting height : 475mm
Weight : 15070kg
Condition : New
Power : 140kw
Max. depth of cut : 715mm
New Road Construction Machinery 190hp Motor Grader SEM919 With SDEC Ebgine
Advantages of motor grader SEM919
High Productivity: Load sensing hydraulic system provides consistent and precise blade movement
High Reliability: A-frame designed drawbar provides strength in all blade positions
Comfort: World Class industry control layout with low lever efforts for reduced operator fatigue
Operating Weight | 15,070 kg |
Engine Model | SDEC SC8D190.1G2 |
Rated Power | 140 kW/188 hp |
Overall Dimensions L*W*H | 8703*2630*3360 mm |
Blade Length | 3,974 mm |
Max. Drawbar | 78 kN |
Max. Lift above Ground (Blade) | 475 mm |
Max. Depth of Cut (Blade) | 715 mm |
Max. Blade Tip - Forward | 40º |
Max. Blade Tip - Rear | 5º |
Front Axle Steering Angle Left/Right | 47.5º |
Min. Turning Radius | 7.8 m |
Tandem Oscillation (Front up) | 15º |
Tandem Oscillation (Rear up) | 25º |
Transmission Model | Hangchi 6WG180 |
Gears | F6/R3 |
Tires | 17.5-25 |
Presale Serivce:
Professional sales team supply personalized service according to customer's requirement.
Order operation:
We will start production of your order within 3 days with strict quality control.
Shipping:
According to different shipping requirements,our company logistics department will ship the machinery to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.
After-sales Service:
Regularly callback to know the machinery working status and offer reasonable tech proposals.
Timely spare parts supply to guarantee machinery working continuously.
Our oversea engineers are ready all the time to serve.
1. Question: What's your payment term?
Answer: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
2. Question: How about the delivery time?
Answer: Fot the motor grader we will ship it in 30 days after down payment. And in one week if there are machinery in stock.
3. Whats's the warranty time?
Answer: We provide one year warranty for the machinery.
4. How do you offer the after sale service?
Answer: We offer after sale service life long. Engineers are available to go abroad for training and spare parts will be sent at the soonest.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
![]() |

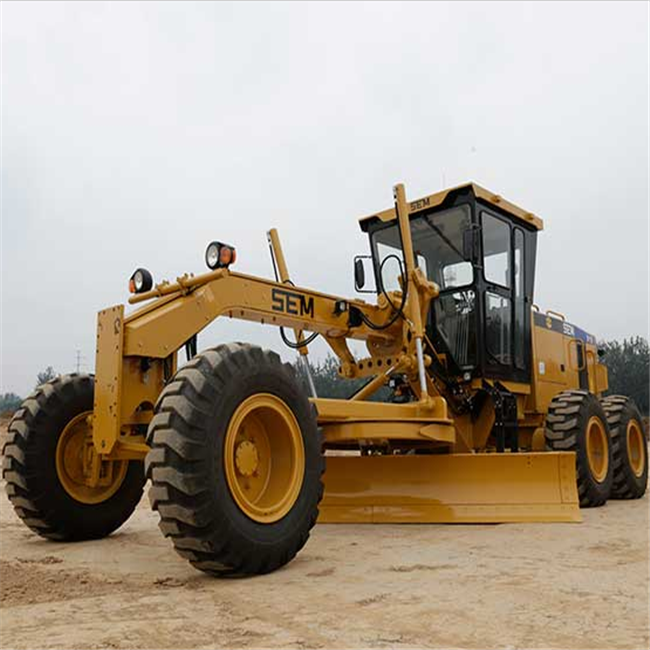

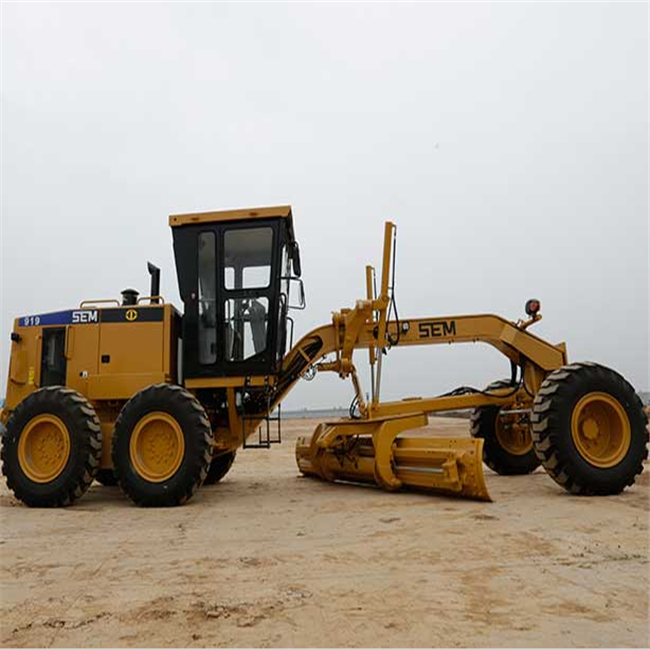

Safety Road Construction Machinery 190hp Motor Grader SEM919 With SDEC Engine Images |
