BZC400CHW Truck-mounted Water Well Drilling Rig 400m Drilling Depth SINOTRUK Chassis
Product parameter
| Parameter |
| Drill depth | 400m |
| Drill rod | 89mm(3-1/2”) |
| Winch capacity | Main hook lifting capacity(kN) | 240 |
| Auxiliary hook lifting capacity(kN) | 160 |
| Max-rope speed of main winch(n/min) | 60 |
| Max-rope speed of auxiliary winch(n/min) | 60 |
| Rotary table | Inner diameter(mm) | 500 |
| Rotate speed(rpm) | 96;76;44;24;12 |
| Max-torque(kN.m) | 25 |
| Mast | Height(mm) | 11900 |
| Rated load(t) | 28 |
| Drill tool | Kelly (mm) | 108*108*7500 |
| Drill rod(mm) | 89*6000 |
| Mud pump | Displacement 850L/min | Pressure 2Mpa |
| Displacement 600L/min | Pressure 3Mpa |
| Diesel engine | Cummins 6BT5.9-C150 | 112KW/2200rpm |
| Transportation size | L*W*H(mm) | 12450*2500*4000 |
Product feature
BZC400CHW truck-mounted water well drilling rig is truck-mounted rotary drilling rig.The drilling rig adopts the chassis of SINOTRUK HOWO 6×4 or 6×6 special vehicle.The diesel engine,double hydraulic winches,mud pump,rotary table,mast,kelly are all installed on the chassis.BZC400CHW water well drilling rig can drill with mud pump,air foam pump .It is highly adaptable to the stratum structure and can be used for drilling in clay,sand,highly weathered rock,bedrock,basalt and other strata.
Our customer all over the world
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

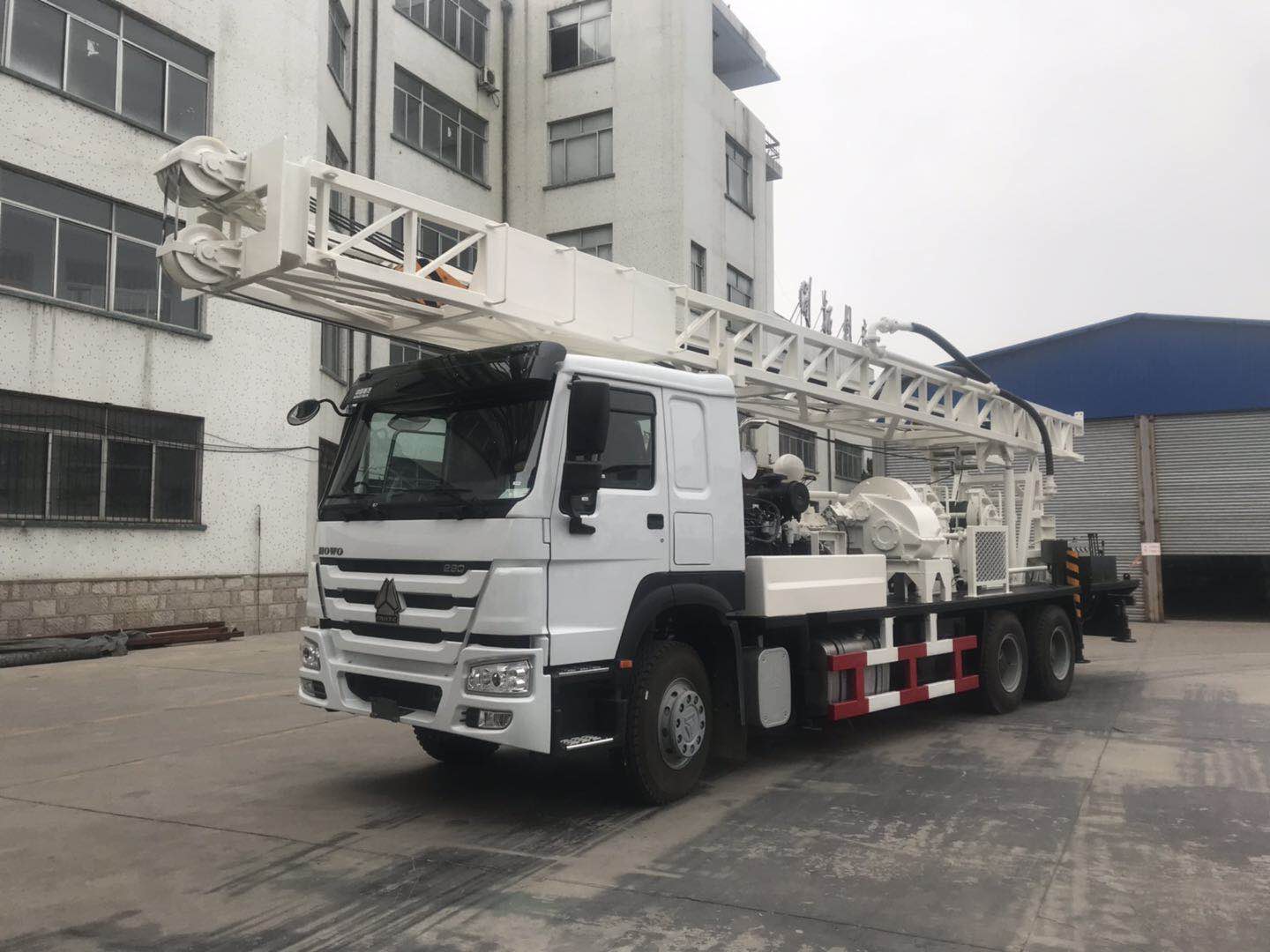

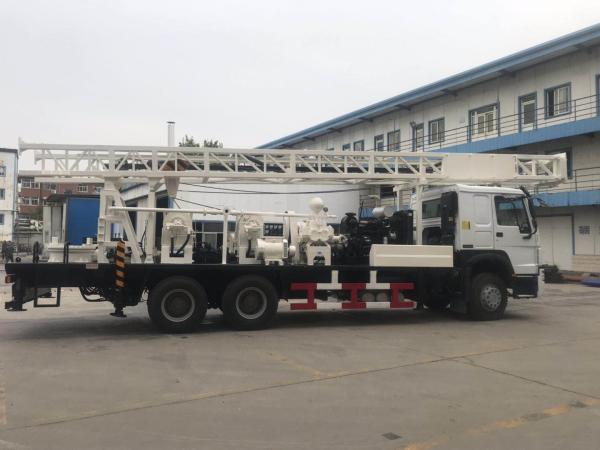

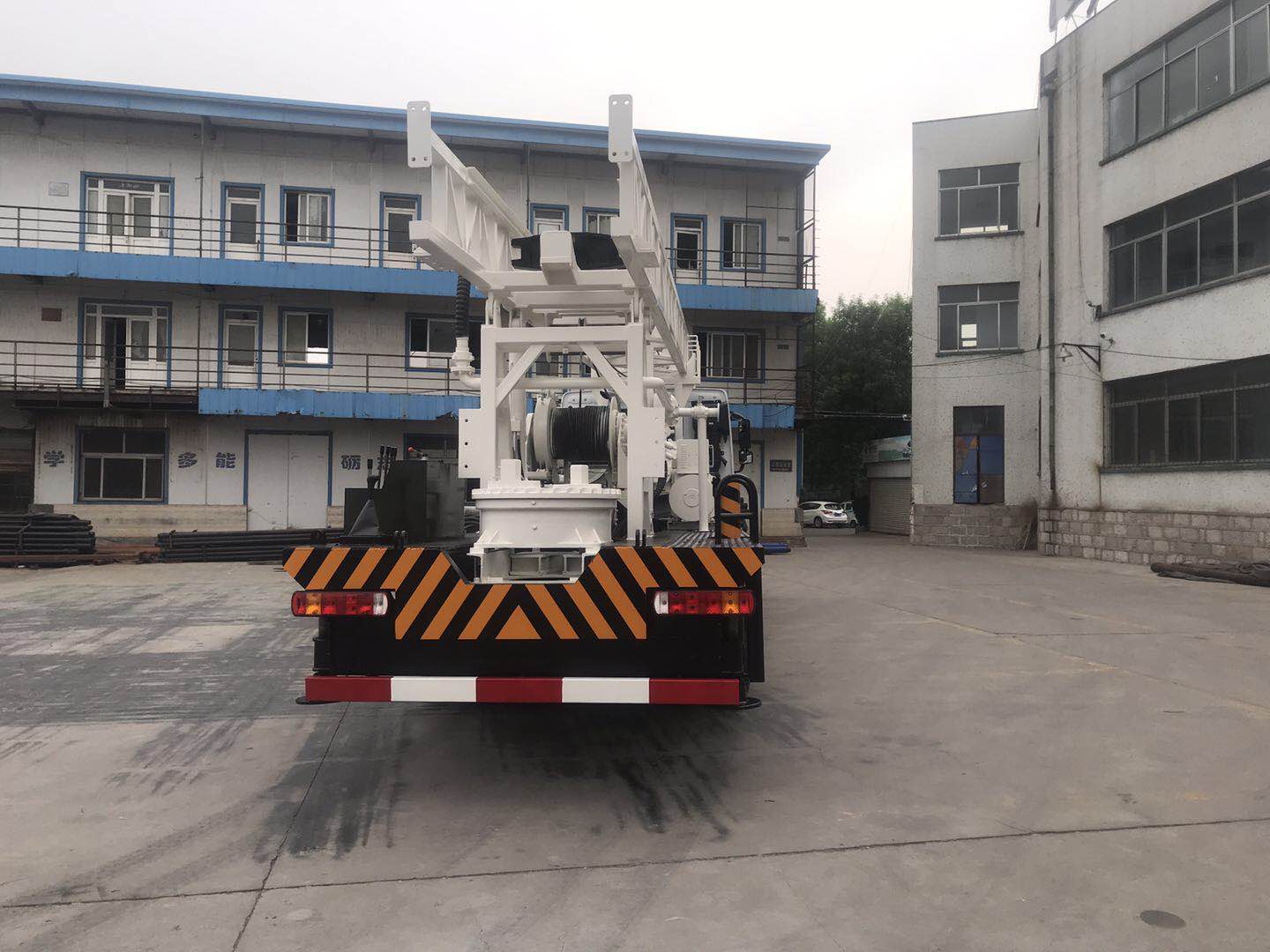

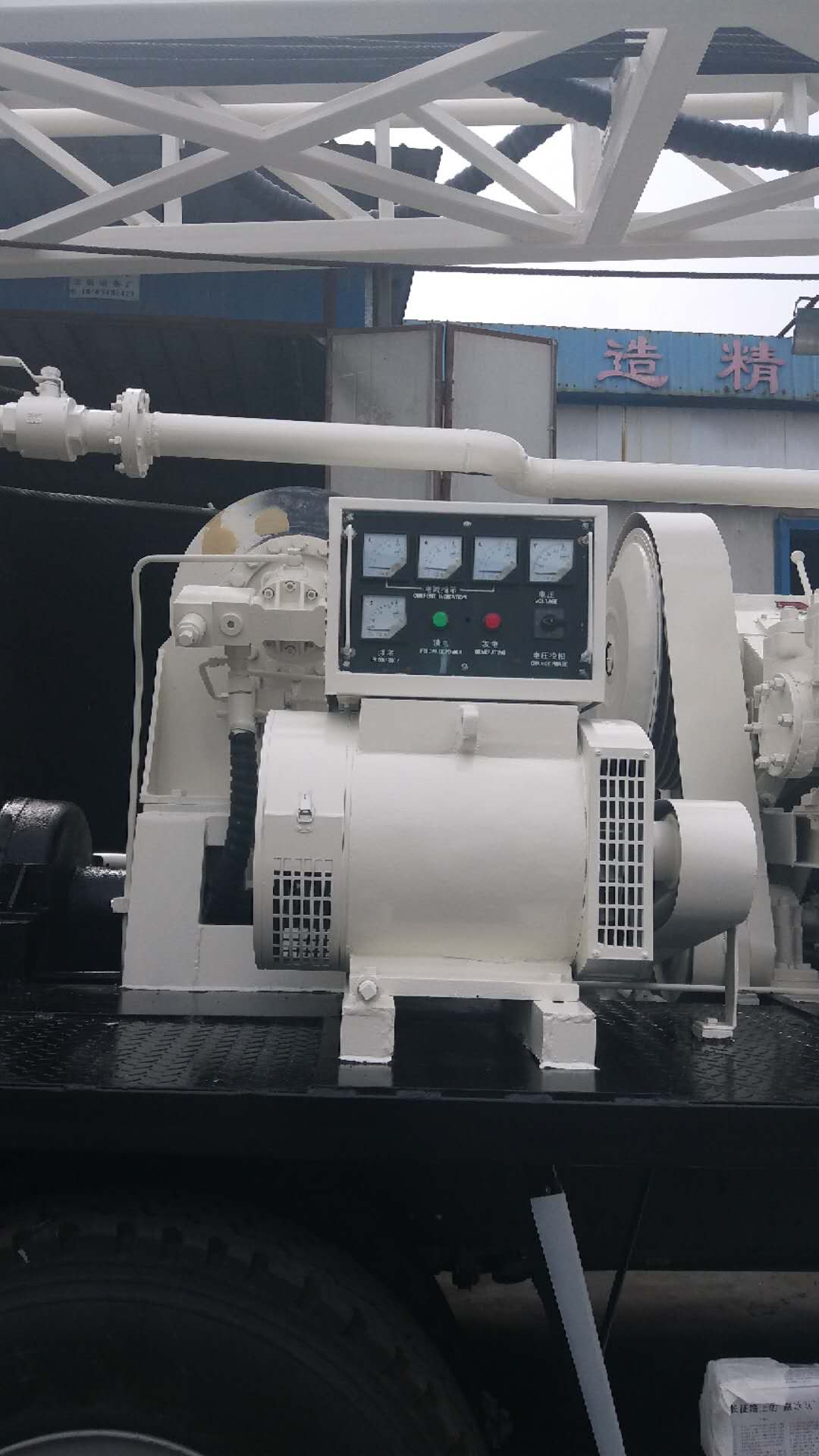

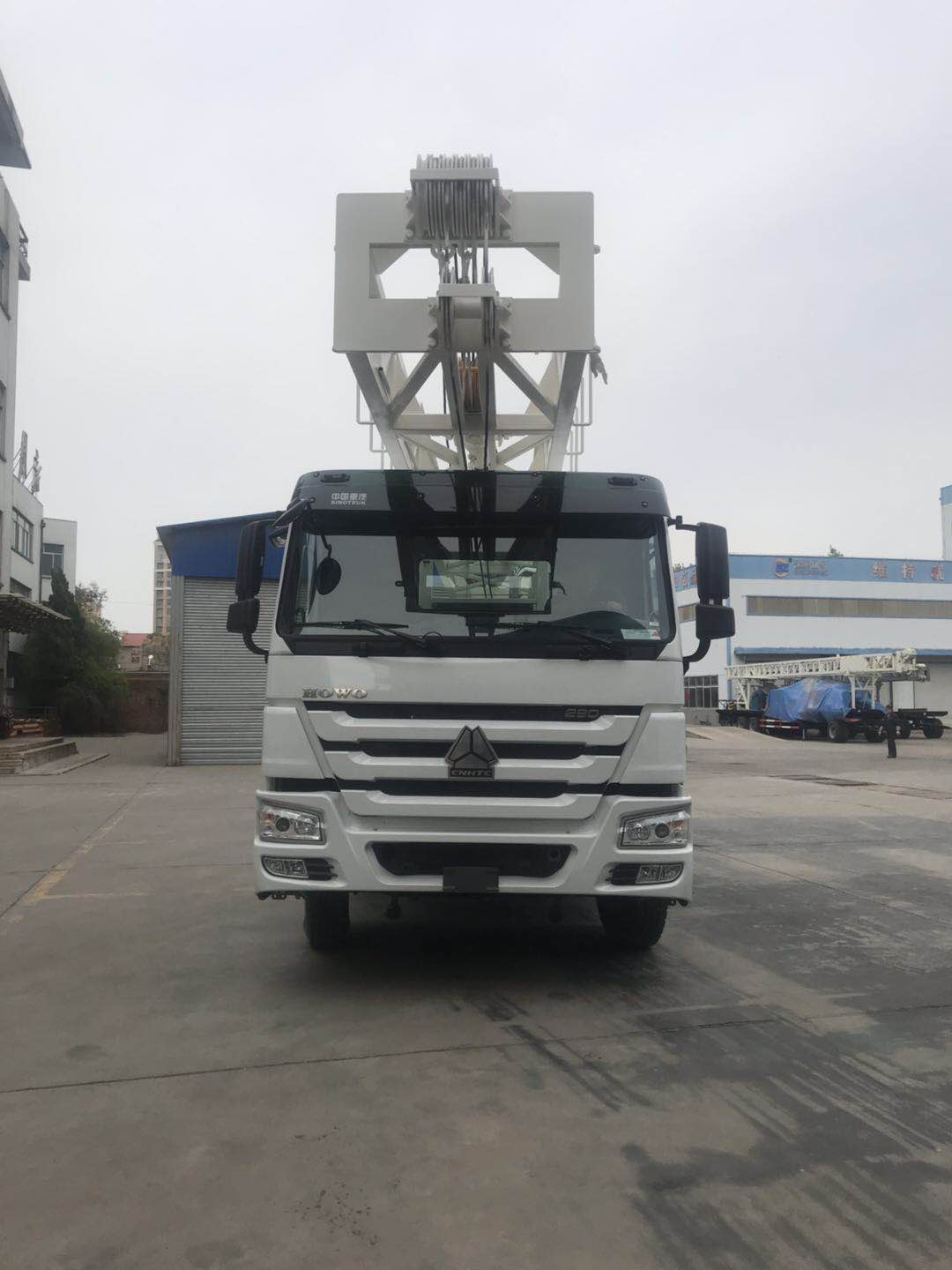

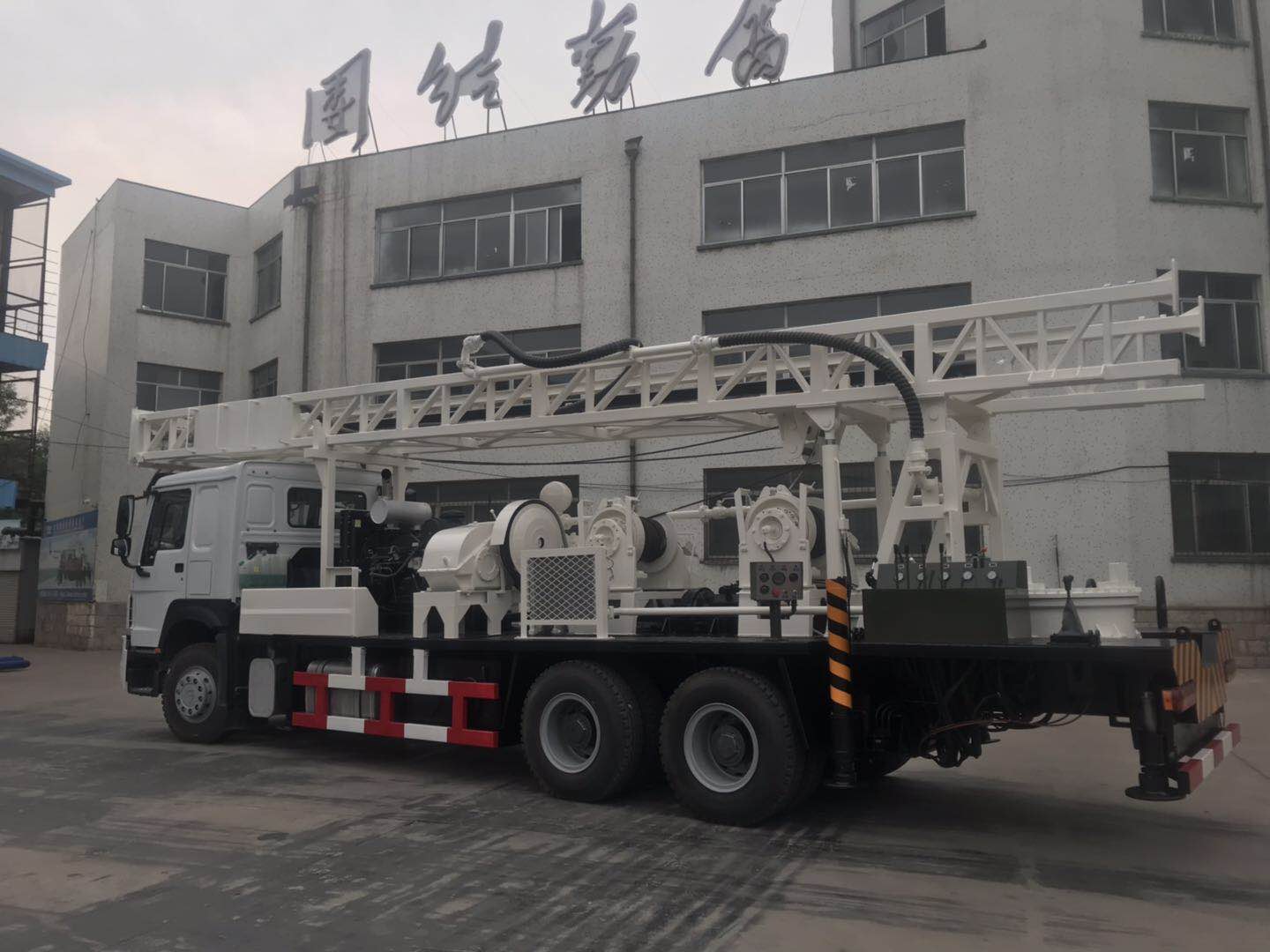

Product picture
