CA5310JSQP63K1L6T4E5 Euro 3 Emissions FAW J6P Lorry-Mounted Crane Truck
Product Description:
| Crane type | SQ12SA3(12 tons four quarter straight arm) |
| Maximum lifting mass t | 12 |
| Maximum lifting moment T.M | 30 |
| Section form | Pentagon | Rotary mechanism | Rotation speed r/min | 2 |
| Number of nodes | 4 (stretch three knots) | Gyration range | 360(Arbitrarily) |
| Length m | 5.4-15.6 | Leg | Type | H type leg |
| Maximum operating radius m | 15.45 | Span M | 2.2-5.9 |
| Extension speed m/s | 0.19 | Hydraulic system | System pressure Mpa | 21 |
| Range of variation (degree) | 1-72 | Fuel tank volume L | 150 |
| Arm angle velocity /s | 3.2 | Safety device | Over coil alarm |
| Maximum lifting height M | 17 | Self weight kg | 4000 |
| Lifting speed of hook | 8m/min | Installation space | 1250mm |
| Diameter of wire rope mm | 12 | Matching truck | Trucks weighing 14 tons or more |
| Length of wire rope M | 115 | |
| Lifting capacity comparison table |
| Working radius m | 2.5 | 3 | 4.5 | 5.5 | 6 | 8.5 | 9 | 11.5 | 15.4 | |
| Rated load kg | 12000 | 9890 | 6330 | 5130 | 4600 | 2660 | 2350 | 1420 | 700 | |
Description:
Boom Truck Crane Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.Compact boom head .Extend the jib length, which can extend the working radius to the most.Hydraulic pipeline.The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.Operating cab.
Boom Truck Crane has large space and wide views. The control levers and instrument buttons are at hand.
Torque limiter
Packing:
1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners
Advantages:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
4.Specialization ,standard and accurate meet your requirement.
5. The price is competitive.
6.Excellent and high-quality control

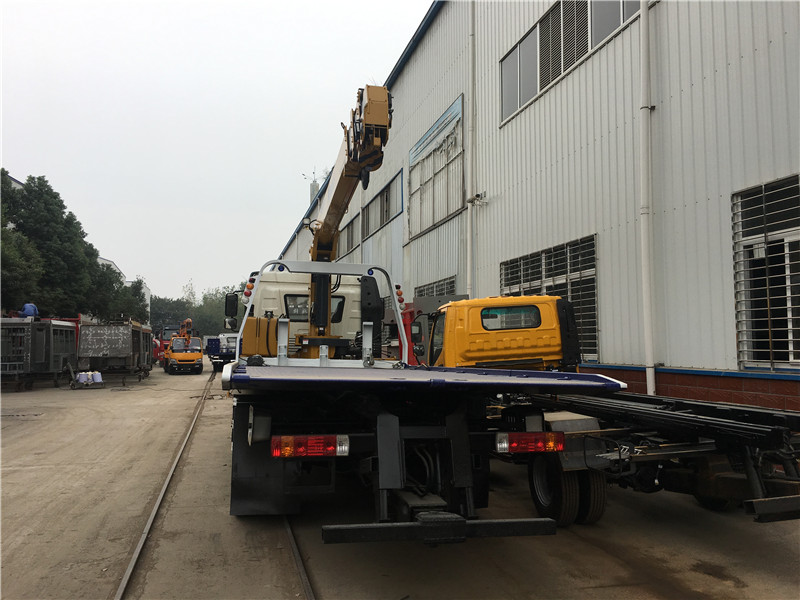

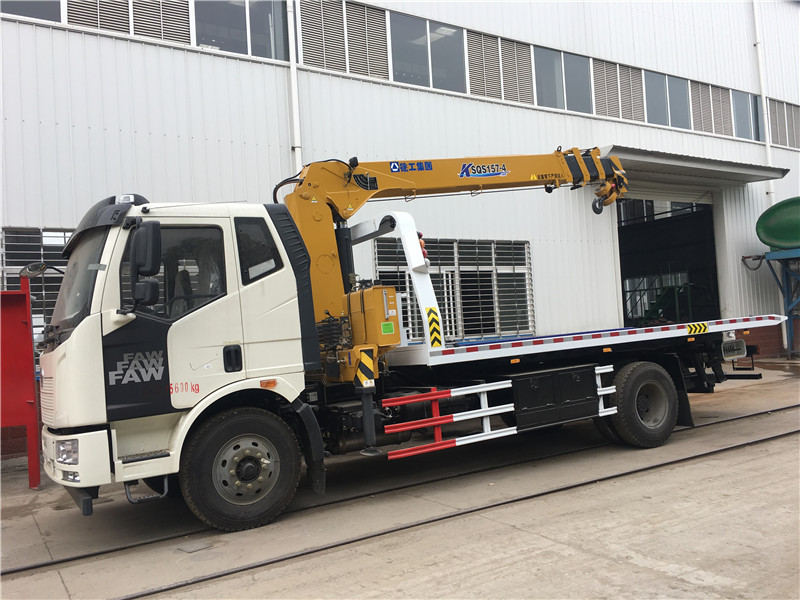

Product Pictures :
