6X4 380HP 400HP 10 Wheeler 40ton Sinotruk HOWO Tipper Dumper Dump Truck

Brand Name : sinotruk

Model Number : howo-7

Certification : iso,

Place of Origin : China

MOQ : 1 pc

Price : NEGOTIABLE

Payment Terms : L/C,T/T

Supply Ability : 500 units/month

Delivery Time : 40 worker days

Packaging Details : nude

Model NO. : howo 6*4 dump truck

Transmission Type : Manual

Load Capacity : 31-40t

Drive Wheel : 6×4

Horsepower : 380hp

Tire Certification : ECE, GCC, ISO, DOT

Condition : New

Drive Seat : Air Suspension Seat

Contact Now

6X4 380HP 400HP 10 Wheeler 40ton Sinotruk HOWO Tipper Dumper Dump Truck

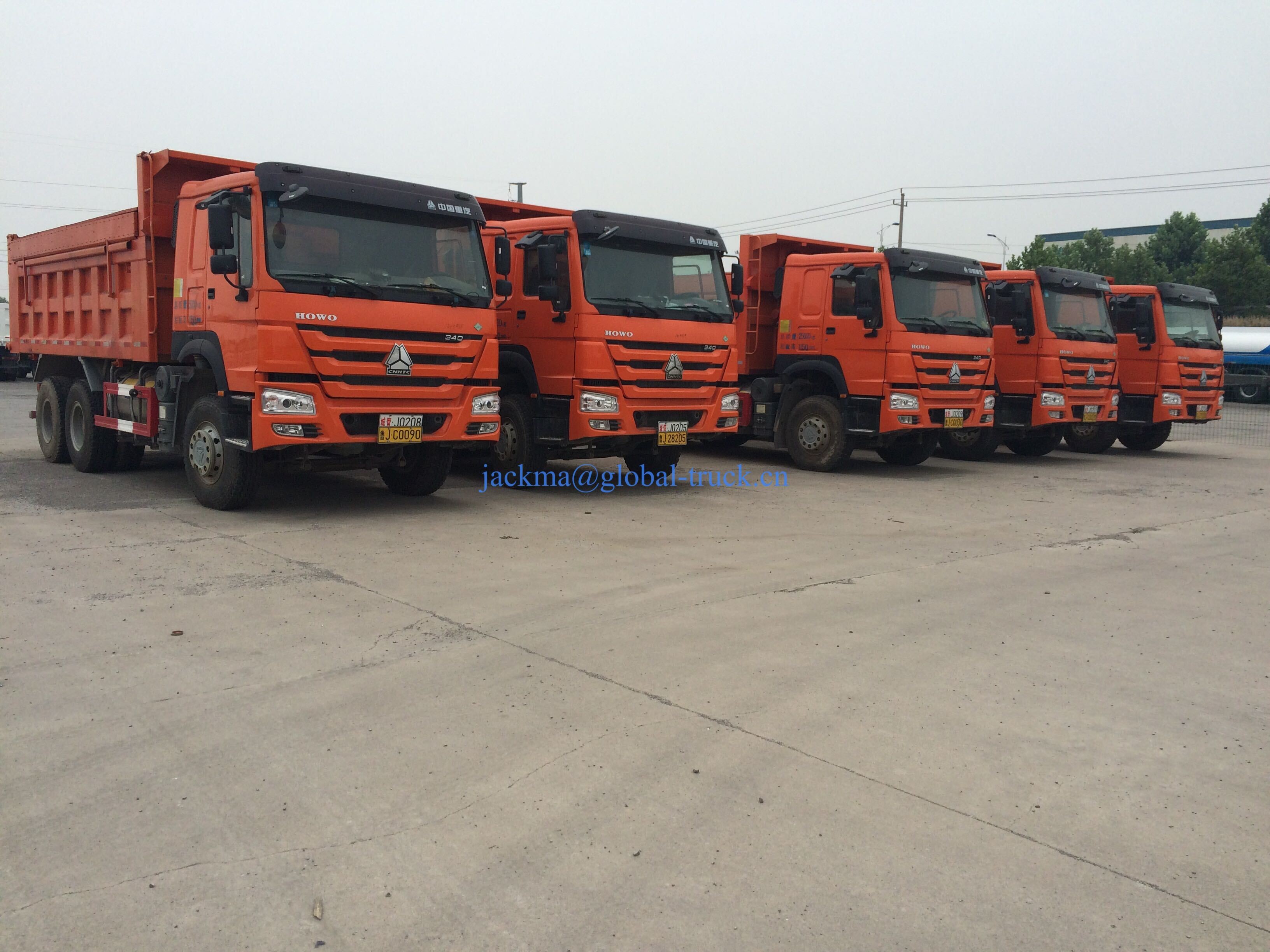

Sinotruk 6×4 tipper trailer truck is a very common bulk cargo transport vehicle with a very wide range of applications and strong application capabilities.
This type of dump truck trailer is mainly composed of a vehicle chassis, an engine, a hydraulic lifting device, a cargo compartment, and a cab, and the cargo is unloaded by operating the hydraulic lifting system.
The dump truck has strong loading capacity, good toughness, no deformation and fracture, and can adapt to more complex road conditions, such as: mountain roads, highways, and dirt roads.
We have different types and configurations of heavy dump truck trailers for you to choose, and we also support customized production to help you better complete transportation business.


Truck Model
ZZ3257N3647

Truck Brand
SINOTRUK-HOWO

Driving Style
Left Hand Driving

Dimension(Lx W xH)(unloaded)
8214x2496x3170

Cargo body size (L*W*H, mm)
5600x2300x1500 19.32m3

Cargo thickness(mm)
Bottom:8mm, Side:6mm

Lift type of Carriag
Middle side

Approaching angle/Departure angle(°)
19/26

Overhang(front/rear) (mm)
1500/1739

Wheel base (mm)
3625+1350

Max speed(km/h)
75

Curb weight(kg)
12290

Loading Weight(kg)
30000

Fuel tanker capacity
300

Fuel consumption(L/km)
20-40 L/100 km

Clutch
Single-plate dry clutch Φ420mm

Fuel type
Diesel

Horse Power
336hp

Emission
EURO II

Engine Model (Steyr technology, made in China)
WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling ,
directly injection

Transmission Model
HW15710,10 forwards and 2 reverse

Steering system Model
ZF8098 hydraulic steering with power assistance

Front axle
HF9,Steering with double T-cross section beam

Rear axle
HC16,casting axle housing,central double reduction with differential locks between axles and wheels

Color
Optional (White ,Red ,yellow )

Tyre
11.00-20,11 pieces

Battery
2X12V/165Ah

Alternator
28V-1500kw

Starter
7.5Kw/24V

Cab
HW76 cab, (one sleeper,with air-condition)
