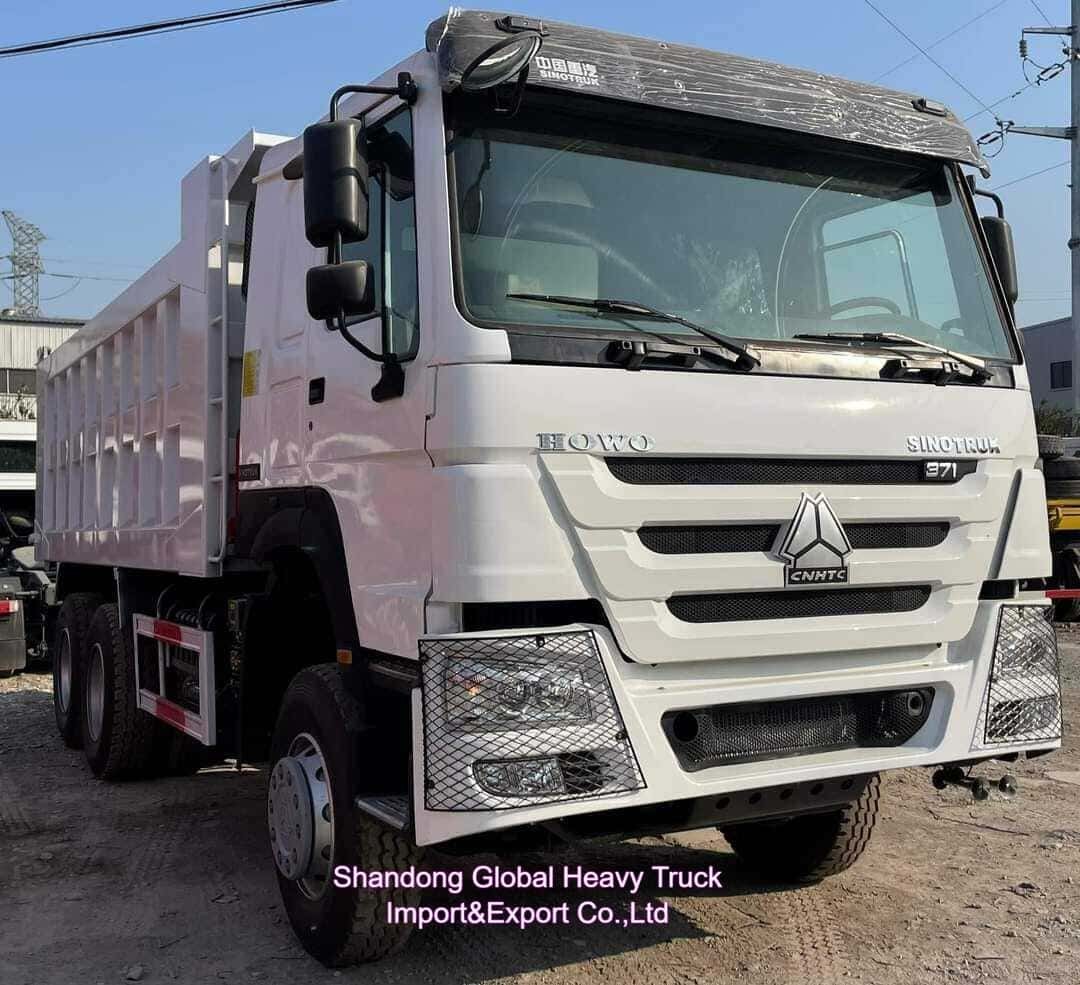

Chinese Brand Sinotruck HOWO Dump Truck 6*4 Euro 3 Heavy Truck Tipper in Good Condition in Stock

Brand Name : howo

Model Number : howo-7

Certification : iso,ce

Place of Origin : China

MOQ : 1 pc

Price : NEGOTIABLE

Payment Terms : L/C,T/T

Supply Ability : 500 units/month

Delivery Time : 40 worker days

Packaging Details : nude

Model NO. : howo 6*4 dump truck

Transmission Type : Manual

Load Capacity : 40t

Drive Wheel : 6×4

Clutch : SinotrukΦ430mm Diaphragm Spring Clutch

Specification : 8.245x2.2.496x3.45

Condition : New

Drive Seat : Air Suspension Seat

Contact Now

Chinese Brand Sinotruck HOWO Dump Truck 6*4 Euro 3 Heavy Truck Tipper in Good Condition in Stock


VEHICLE SPECIFICATION
DESCRIPTION
Truck Model
ZZ3257S3647W
Driving Position
Left hand Driving
Fuel tanker capacity(L)
 300
The Total Mass
35,000kg
Dead Weight
12,300kg
Max speed(km/h)(km/h)
 102
Dimension(Lx W xH)(mm)
8685x2496x3850
Cargo box
5600x2300x1500 mm
Box thickness
Boot 8mm side 6mm
Frame Details
High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members.
Overhang(front/rear) (mm)
1500/725
Wheel base (mm)
3625+1350
Engine Model
WP 12.400E201
Power
400hp/295kw.2000r/min
Emission
EURO II
Displacement(L)
11.896
Type
water-cooled,four strokes,6 cylinders in
line,turbocharged, directly injection
Fuel Consumption(L/100km)
25L/100km
Clutch
SINOTRUKΦ430mm diaphragm spring
clutch
Gear Box
HW19710
Front Axle Model
VGD95 axle. Capacity: 9000kg
Rear Axle
HC16 axle. Capacity:2X 16000kg
Ratio of rear axle
4.8/4.2
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Tire Type
1200R20/12R22.5
Quantity
 10+1 spare
Kin pin
50mm or 90mm
Cabin
HW76 Standard cabin

1.HOWO truck adopts the international key advanced technology of heavy duty truck, it is researched and developed by Sinotruk in line with international technical standards. With reliable performance and reasonable price, HOWO trucks will improve work efficiency and make money for you.

2.Engine horse-power from 260-420hp, Euro II emission, strong power and low maintenance cost.

3.New generation well-crafted transmission specially for heavy duty truck. Its primary transmission adopts twin countershaft structure and auxiliary transmission adopts planetary deceleration, which makes its bearing capacity stronger and more reliable.

4.16t rear axle and 9t front axle, higher axle rigidity and bearing capacity, long service lift and low noise, optional speed ratio, which make the truck more suitable for your request.

5.All the bodies and Cabs are manufactured by robots and adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance, all these is to keep drivers safe.

6.Long-term collaboration with famous international automobile parts enterprise, ensuring high quality in every detail of the product.

7.Sinotruk is the largest heavy duty truck manufacture and exporter in China, which has exported a cumulative total of 350,000 trucks overseas. More than 500 marketing and service nets, customers can get spare parts and service easily.

Chinese Brand Sinotruck HOWO Dump Truck 6*4 Euro 3 Heavy Truck Tipper in Good Condition in Stock
